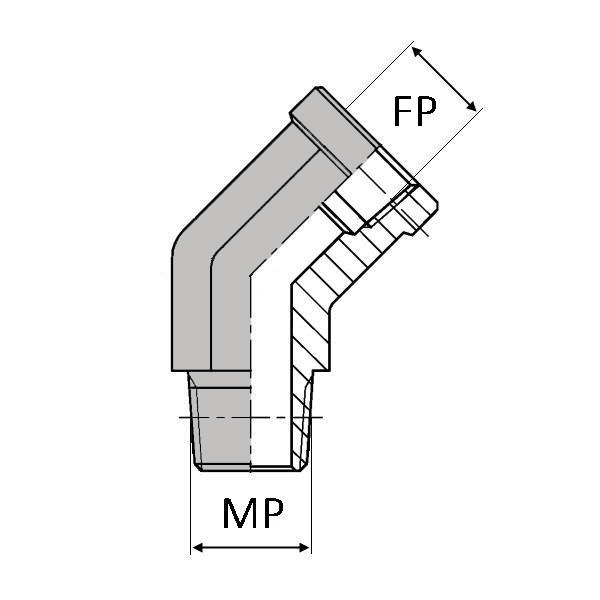

Coude 45° mâle NPT x femelle NPT
7 mars 2017
Adaptateur droit mâle NPT x femelle NPT prolongé
|
Référence |
Désignation |
ø MP |
ø FP |
||
|
in |
mm |
in |
mm |
||
|
NPT-MF0202P |
UMFNPT 1/8 / 1/8 PROLONGE |
1/8′ |
10,24 |
1/8′ |
8,48 |
|
NPT-MF0204P |
UMFNPT 1/8 / 1/4 PROLONGE |
1/8′ |
10,24 |
1/4′ |
10,99 |
|
NPT-MF0206P |
UMFNPT 1/8 / 3/8 PROLONGE |
1/8′ |
10,24 |
3/8′ |
14,41 |
|
NPT-MF0404P |
UMFNPT 1/4 / 1/4 PROLONGE |
1/4′ |
13,61 |
1/4′ |
10,99 |
|
NPT-MF0406P |
UMFNPT 1/4 / 3/8 PROLONGE |
1/4′ |
13,61 |
3/8′ |
14,41 |
|
NPT-MF0408P |
UMFNPT 1/4 / 1/2 PROLONGE |
1/4′ |
13,61 |
1/2′ |
17,81 |
|
NPT-MF0606P |
UMFNPT 3/8 / 3/8 PROLONGE |
3/8′ |
17,05 |
3/8′ |
14,41 |
|
NPT-MF0608P |
UMFNPT 3/8 / 1/2 PROLONGE |
3/8′ |
17,05 |
1/2′ |
17,81 |
|
NPT-MF0808P |
UMFNPT 1/2 / 1/2 PROLONGE |
1/2′ |
21,22 |
1/2′ |
17,81 |
|
NPT-MF0812P |
UMFNPT 1/2 / 3/4 PROLONGE |
1/2′ |
21,22 |
3/4′ |
23,12 |
|
NPT-MF0816P |
UMFNPT 1/2 / 1″ PROLONGE |
1/2′ |
21,22 |
1″ |
29,06 |
|
NPT-MF1212P |
UMFNPT 3/4 / 3/4 PROLONGE |
3/4′ |
26,56 |
3/4′ |
23,12 |
|
NPT-MF1220P |
UMFNPT 3/4 / 1″1/4 PROLONGE |
3/4′ |
26,56 |
1″1/4′ |
37,78 |
|
NPT-MF1620P |
UMFNPT 1″ / 1″1/4 PROLONGE |
1″ |
33,22 |
1″1/4′ |
37,78 |
|
NPT-MF2016P |
UMFNPT 1″1/4 / 1″ PROLONGE |
1″1/4′ |
41,98 |
1″ |
29,06 |
|
NPT-MF2024P |
UMFNPT 1″1/4 / 1″1/2PROLONGE |
1″1/4′ |
41,98 |
1″1/2′ |
43,85 |
