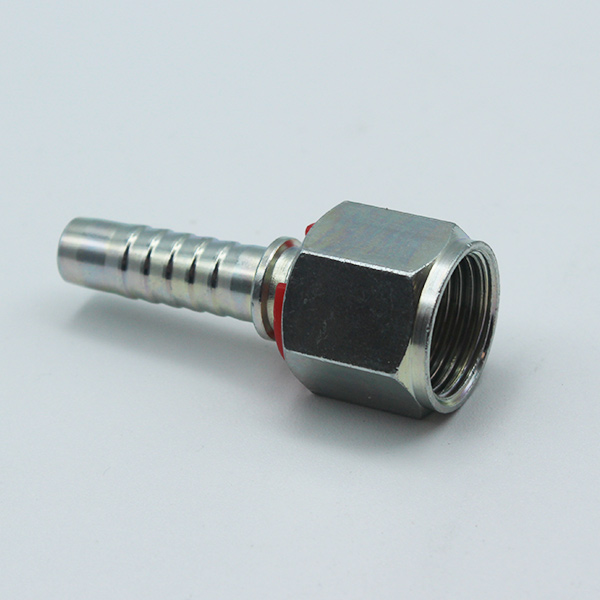

Femelle JIC droit
7 mars 2017
Femelle JIC coudé 90°
7 mars 2017

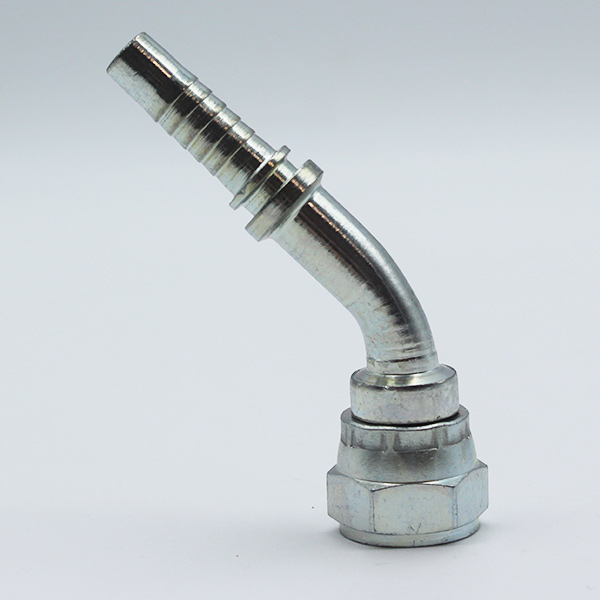

Femelle JIC coudé 45°
Les embouts à sertir de filetage JIC ont un cône 74°.
Ils sont particulièrement utilisés dans le transfert d’huiles hydrauliques des engins de manutentions, lavage, poids lourds, matériel agricole…
|
Référence |
Désignation |
S (Int. Tuyaux ) |
Filetage F |
|||
|
module |
inch |
mm |
inch |
mm |
||
|
SFJI400304 |
S 04 FJI 7/16 45 |
03 |
3/16″ |
4,80 |
7/16 |
9,71 |
|
SFJI400305 |
S 04 FJI 1/2 45 |
03 |
3/16″ |
4,80 |
1/2 |
11,12 |
|
SFJI400404 |
S 06 FJI 7/16 45 |
04 |
1/4″ |
6,35 |
7/16 |
9,71 |
|
SFJI400405 |
S 06 FJI 1/2 45 |
04 |
1/4″ |
6,35 |
1/2 |
11,12 |
|
SFJI400406 |
S 06 FJI 9/16 45 |
04 |
1/4″ |
6,35 |
9/16 |
12,76 |
|
SFJI400505 |
S 08 FJI 1/2 45 |
05 |
5/16″ |
8,00 |
1/2 |
11,12 |
|
SFJI400506 |
S 08 FJI 9/16 45 |
05 |
5/16″ |
8,00 |
9/16 |
12,76 |
|
SFJI400507 |
S 08 FJI 5/8 45 |
05 |
5/16″ |
8,00 |
5/8 |
14,39 |
|
SFJI400508 |
S 08 FJI 3/4 45 |
05 |
5/16″ |
8,00 |
3/4 |
17,33 |
|
SFJI400606 |
S 10 FJI 9/16 45 |
06 |
3/8″ |
9,50 |
9/16 |
12,76 |
|
SFJI400607 |
S 10 FJI 5/8 45 |
06 |
3/8″ |
9,50 |
5/8 |
14,39 |
|
SFJI400608 |
S 10 FJI 3/4 45 |
06 |
3/8″ |
9,50 |
3/4 |
17,33 |
|
SFJI400610 |
S 10 FJI 7/8 45 |
06 |
3/8″ |
9,50 |
7/8 |
20,26 |
|
SFJI400808 |
S 13 FJI 3/4 45 |
08 |
1/2″ |
12,70 |
3/4 |
17,33 |
|
SFJI400810 |
S 13 FJI 7/8 45 |
08 |
1/2″ |
12,70 |
7/8 |
20,26 |
|
SFJI400812 |
S 13 FJI 1″1/16 45 |
08 |
1/2″ |
12,70 |
1″1/16 |
24,69 |
|
SFJI401010 |
S 16 FJI 7/8 45 |
10 |
5/8″ |
15,90 |
7/8 |
20,26 |
|
SFJI401012 |
S 16 FJI 1″1/16 45 |
10 |
5/8″ |
15,90 |
1″1/16 |
24,69 |
|
SFJI401210 |
S 19 FJI 7/8 45 |
12 |
3/4″ |
19,00 |
7/8 |
20,26 |
|
SFJI401212 |
S 19 FJI 1″1/16 45 |
12 |
3/4″ |
19,00 |
1″1/16 |
24,69 |
|
SFJI401214 |
S 19 FJI 1″3/16 45 |
12 |
3/4″ |
19,00 |
1″3/16 |
27,87 |
|
SFJI401216 |
S 19 FJI 1″5/16 45 |
12 |
3/4″ |
19,00 |
1″5/16 |
31,04 |
|
SFJI401612 |
S 25 FJI 1″1/16 45 |
16 |
1″ |
25,40 |
1″1/16 |
24,69 |
|
SFJI401614 |
S 25 FJI 1″3/16 45 |
16 |
1″ |
25,40 |
1″3/16 |
27,87 |
|
SFJI401616 |
S 25 FJI 1″5/16 45 |
16 |
1″ |
25,40 |
1″5/16 |
31,04 |
|
SFJI401620 |
S 25 FJI 1″5/8 45 |
16 |
1″ |
25,40 |
1″5/8 |
38,98 |
|
SFJI402020 |
S 32 FJI 1″5/8 45 |
20 |
1″1/4 |
31,80 |
1″5/8 |
38,98 |
|
SFJI402024 |
S 32 FJI 1″7/8 45 |
20 |
1″1/4 |
31,80 |
1″7/8 |
45,33 |
|
SFJI402424 |
S 38 FJI 1″7/8 45 |
24 |
1″1/2 |
38,10 |
1″7/8 |
45,33 |
|
SFJI403232 |
S 50 FJI 2″1/2 45 |
32 |
2″ |
50,80 |
2″1/2 |
61,20 |
