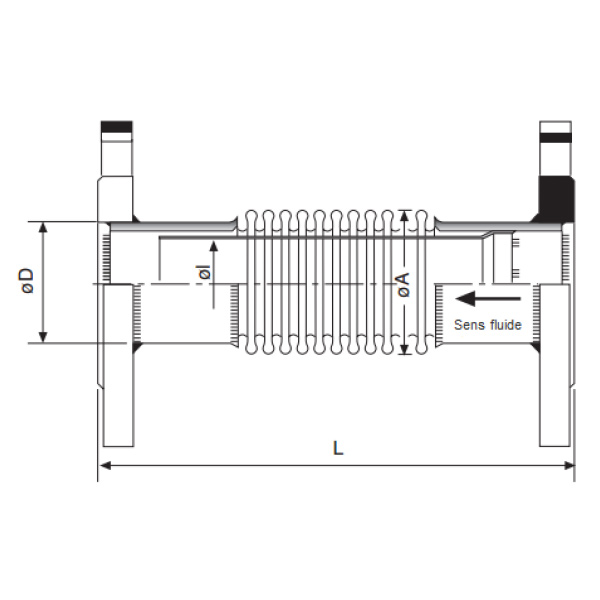

Référence |
DN |
Mvt axial |
L |
D |
A |
I |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
DI-CPIA.BF16G.015 |
15 |
20 |
200 |
21.3 |
36 |
14 |
DI-CPIA.BF16G.020 |
20 |
20 |
200 |
26.9 |
36 |
18 |
DI-CPIA.BF16G.025 |
25 |
25 |
210 |
33.7 |
42 |
23.9 |
DI-CPIA.BF16G.032 |
32 |
25 |
210 |
42.4 |
50 |
30.7 |
DI-CPIA.BF16G.040 |
40 |
25 |
215 |
48.3 |
60 |
39 |
DI-CPIA.BF16G.050 |
50 |
30 |
245 |
60.3 |
75 |
49 |
DI-CPIA.BF16G.065 |
65 |
40 |
270 |
76.1 |
90 |
65 |
DI-CPIA.BF16G.080 |
80 |
45 |
270 |
88.9 |
110 |
77 |
DI-CPIA.BF16G.100 |
100 |
45 |
285 |
114.3 |
133 |
100 |
DI-CPIA.BF16G.125 |
125 |
45 |
310 |
139.7 |
157 |
121 |
DI-CPIA.BF16G.150 |
150 |
65 |
345 |
168.3 |
190 |
150 |
DI-CPIA.BF16G.200 |
200 |
65 |
390 |
219.1 |
250 |
200 |
DI-CPIA.BF16G.250 |
250 |
65 |
395 |
273 |
300 |
250 |
Matériaux | Soufflet en inox AISI 321 (316 sur demande) |
---|---|
Pression de service | 16 bar |
Alésage bride | DIN PN 10 – PN 16 |
Température maxi | + 300° C |
