Collets BWI Passage Intégral – SAE 6000
7 mars 2017
Collets BWR Passage Réduit – SAE 6000
7 mars 2017
Collets BWR Passage Réduit – SAE 3000
ACAG : Collet avec gorge

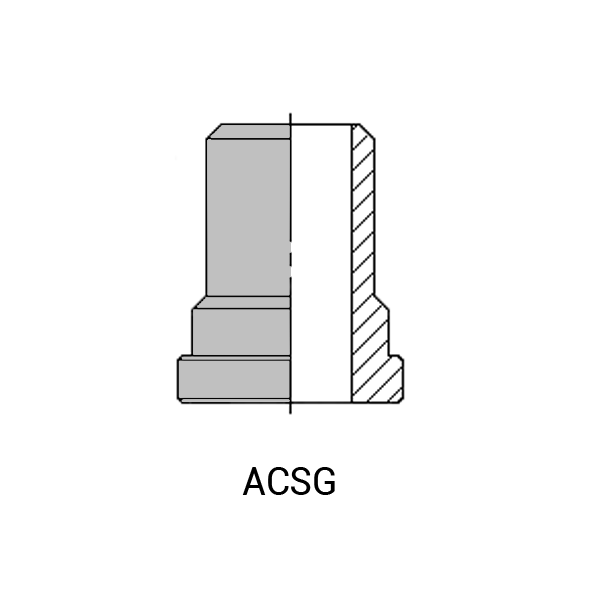

ACSG : collet sans gorge
|
REFERENCE ACAG |
REFERENCE ACSG |
DN |
SERIE |
A |
B |
C |
D |
E |
|
ACAGBW308017 |
ACSGBW308017 |
1/2″ |
SAE3000 / PN250 |
12 |
30.2 |
24.0 |
18.0 |
45 |
|
ACAGBW312021 |
ACSGBW312021 |
3/4″ |
SAE3000 / PN250 |
15 |
38.1 |
31.5 |
22.0 |
50 |
|
ACAGBW316027 |
ACSGBW316027 |
1″ |
SAE3000 / PN250 |
20 |
44.4 |
38.0 |
28.0 |
55 |
|
ACAGBW320034 |
ACSGBW320034 |
1″1/4 |
SAE3000 / PN250 |
25 |
50.3 |
43.0 |
35.0 |
60 |
|
ACAGBW324042 |
ACSGBW324042 |
1″1/2 |
SAE3000 / PN250 |
32 |
60.1 |
49.8 |
43.0 |
65 |
|
ACAGBW332049 |
ACSGBW332049 |
2″ |
SAE3000 / PN250 |
38 |
71.2 |
61.8 |
49.8 |
70 |
|
ACAGBW340060 |
ACSGBW340060 |
2″1/2 |
SAE 3000 |
47 |
84.1 |
73.8 |
61.8 |
80 |
|
ACAGBW340060C |
ACSGBW340060C |
2″1/2 |
PN 250 |
47 |
87.2 |
76.0 |
61.8 |
80 |
|
ACAGBW348076 |
ACSGBW348076 |
3″ |
SAE3000 / PN250 |
58 |
101.5 |
90.0 |
73.8 |
90 |
|
ACAGBW356090 |
ACSGBW356090 |
3″1/2 |
SAE 3000 |
73 |
114.2 |
102.0 |
90.0 |
90 |
|
ACAGBW356090C |
ACSGBW356090C |
3″1/2 |
PN 250 |
70 |
119.0 |
102.0 |
90.0 |
90 |
|
ACAGBW364102 |
ACSGBW364102 |
4″ |
SAE 3000 |
80 |
126.8 |
114.0 |
100 |
110 |
|
ACAGBW364102C |
ACSGBW364102C |
4″ |
PN 250 |
80 |
131.0 |
114.0 |
100 |
110 |
